🧊 Overview

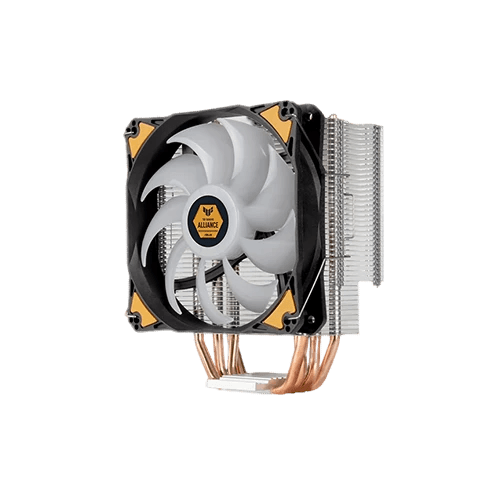

• Model Name: SilverStone AR12-TUF ARGB

• Type: Air cooler with single tower design

• Compatibility: Supports a wide range of Intel and AMD sockets, including Intel LGA 1200 and AMD AM4

• Material: The cooler uses aluminum fins and copper heat pipes for optimal heat dissipation and cooling efficiency.

• Aesthetic: Features addressable RGB lighting that can be customized via compatible software or a physical RGB controller.

⚙️ Key Specifications

📏 Physical Design

• Dimensions (L x W x H):

  • Cooler Dimensions: 128 x 89 x 158 mm

  • Fan Size: 120 mm fan

  • Weight: Around 510g (without fan)

• Fan Design: The AR12-TUF comes with a 120mm fan that features PWM (Pulse Width Modulation) control, allowing automatic adjustment of fan speed based on CPU temperature.

🌀 Cooling Performance

• Fan Speed: The fan can operate at 600–1800 RPM, providing flexibility for both low-noise operation and high-performance cooling.

• Airflow: Delivers a solid 60.7 CFM (Cubic Feet per Minute), ensuring adequate airflow for cooling the CPU.

• Static Pressure: 2.04 mm H2O, which is sufficient to push air through the dense heatsink effectively.

• Noise Level: At full load, the cooler produces noise levels of about 27 dBA, which is relatively quiet for a cooler with such a cooling capacity.

🔌 Power and Connectivity

• Fan Connector: 4-pin PWM connector for automatic fan speed control based on CPU temperature.

• ARGB Lighting: Supports addressable RGB lighting with a 3-pin 5V ARGB connector. Compatible with most major motherboard RGB software such as ASUS Aura Sync, MSI Mystic Light, Gigabyte RGB Fusion, and others.

• RGB Control: You can also control the RGB via an included RGB controller if your motherboard does not support ARGB control.

🌈 Design & Aesthetics

• ARGB Lighting:
  The AR12-TUF ARGB features dynamic RGB lighting on the fan, which adds vibrant color effects to your build. It is addressable, meaning each LED can be individually controlled for more complex lighting patterns.

• TUF Branding: The cooler is designed to match TUF Gaming motherboards with a military-inspired aesthetic, featuring a black-and-yellow color scheme and TUF logo.
